Problem Statement

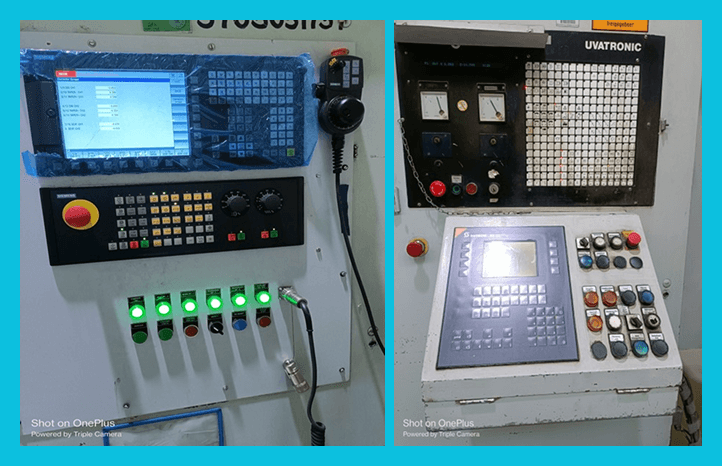

There was no support for the existing Proprietary UVATRONICS controller.
Many accidents with machines occur due to zero shifting.
There is no reference for the Selection of Automation Components.
Cost constraint while selecting Hardware.
There is no documentation of the machine.
Solution Provided
Selection of Automation components along with required option bits.
Motor Mounting and Field cable routing.
New Panel Wiring.
Machine Configuration, Grinding software 2 channel configuration.

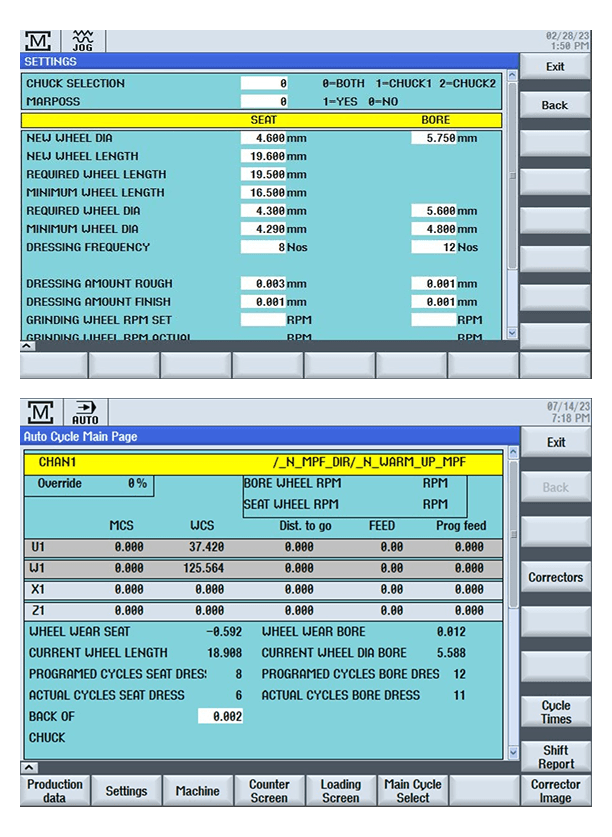

User Intuitive Screens.
Application Prove out.
Machine Details
2 Channel for Parallel operations
Channel X, Z for Bore Operation
Channel2 U, W for Seat Operation
New System Details
828D PPU, SW 280, 2Channel, 4.95, PP Modules
1FT7 Motors
SLM, SMM and DMM
