Problem Statement
There was no support on existing 840C legacy controller from
Siemens Expensive spares, No Support from OEM, No documentation with machine
Twin Spindle ATC logic
Solution Provided
Selection of Automation components along with required option bits

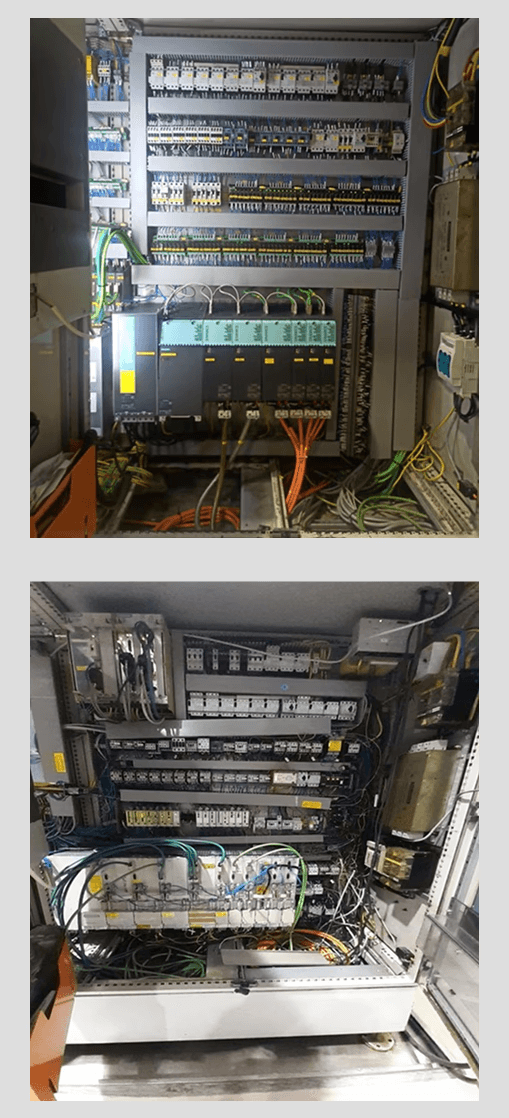

Motor Mounting and Field cables routing New Panel Wiring AND ATC Logic
Machine Configuration, PLC Interlocks, Motor Tuning.
Machine Details
Twin Spindle
X, Y, Z Linear Axes with Linear Scale
A11, A22 Rotatory axes
Magazine Axis
New System Details

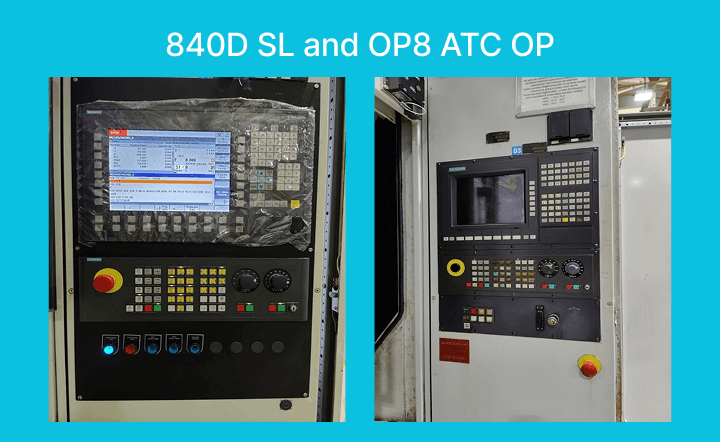

NCU 710.3 , OP12 TCU, OP8, Nx15.3, PP Modules
Simatic IPC 427E
1FT7 Motors
AIM, ALM, SMM and DMM
Linear Scale LC 495
